Weight In KG :13.7
Weight In LB :30.20329

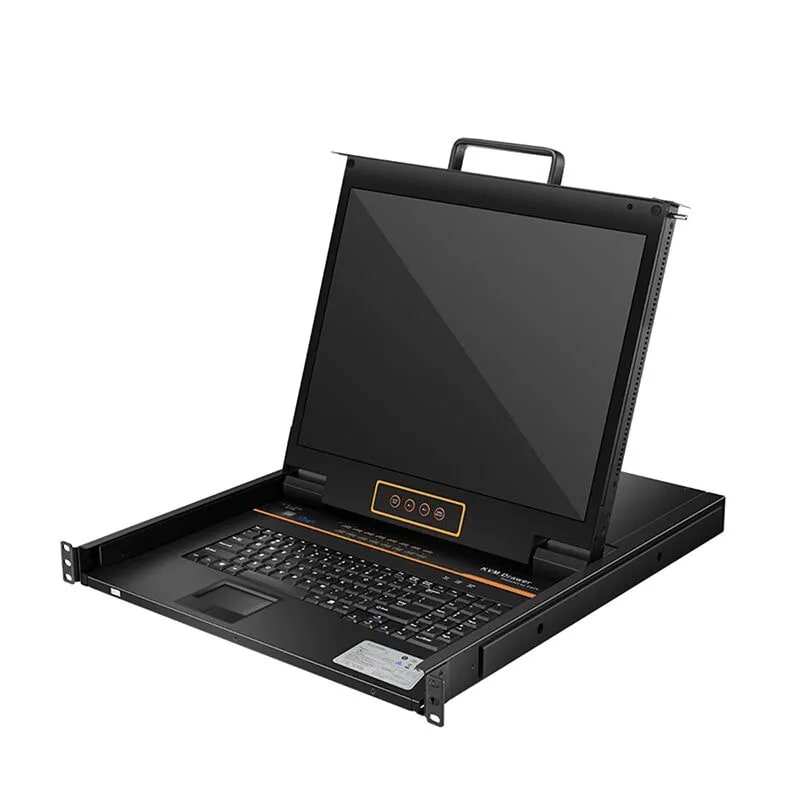

RACKMOUNT 17" LCD VGA KVM SWITCH (8 / 16 PORT)
RACKMOUNT 17" LCD VGA KVM SWITCH (8 / 16 PORT)
Model No : PA-XL1708 / PA-XL-1716
OVERVIEW: This
rackmount LCD KVM console integrates a high-resolution LED display, keyboard,
touchpad, and multi-port KVM switch in a compact 1U drawer design. The
space-saving structure allows users to control multiple computers through a
single console, reducing cost and optimizing rack utilization. It supports
configurations of 8 or 16 ports and provides convenient control of multiple
servers via front-panel push buttons, programmable hotkeys, or an intuitive
On-Screen Display (OSD) interface. The
console is compatible with multiple hardware platforms and operating systems,
making it suitable for data centers, industrial environments, and server rooms
that require centralized management and real-time monitoring.
The system
can be expanded through cascading, allowing up to 512 computers to be managed
from a single console. FEATURES: APPLICATIONS: MECHANICAL DIAGRAM:
TECHNICAL SPECIFICATIONS:-
| PARAMETER | PA-XL1708 | PA-XL1716 |
| Computer Connections | Direct: 8 | Direct: 16 |
| Port Emulation | Keyboard: PS/2, USB | Keyboard: PS/2, USB |
| LCD Monitor | Type: 17” SXGA TFT LCD Optimum Resolution: 1280×1024
@60Hz Maximum Resolution: 1280×1024
@75Hz Display Color: 16.7 M Brightness: 250 cd/m² (Typ) Contrast Ratio: 1000:1 (Typ) Pixel Pitch: 0.264(H) ×
0.264(W) mm | Type: 17” SXGA TFT LCD Optimum Resolution: 1280×1024
@60Hz Maximum Resolution: 1280×1024
@75Hz Display Color: 16.7 M Brightness: 250 cd/m² (Typ) Contrast Ratio: 1000:1 (Typ) Pixel Pitch: 0.264(H) ×
0.264(W) mm |
| Mouse | X/Y Resolution: >1000 points/inch (40 points/mm) Touchpad with scroll wheel – eliminates need for external mouse | X/Y Resolution: >1000 points/inch (40 points/mm) Touchpad with scroll wheel – eliminates need for external mouse |
| Keyboard | 99 keys (82 main + 17 numeric
pad) Full-size layout with
integrated number pad | 99 keys (82 main + 17 numeric
pad) Full-size layout with
integrated number pad |
| Management | Computer switching via LEDs,
hotkeys, or OSD Auto Scan for monitoring Broadcast Mode – simultaneous
control Hot Pluggable – add/remove
without power down Quick server selection by name
or SN | Computer switching via LEDs,
hotkeys, or OSD Auto Scan for monitoring Broadcast Mode – simultaneous
controlHot Pluggable – add/remove without power down Quick server selection by name
or SN |
| Security | Two-level password protection (Admin + 4 Users) Individual user profiles | Two-level password protection (Admin + 4 Users) Individual user profiles |
| Daisy Chain Support | Up to 31 additional switches (control up to 256 servers) | Up to 31 additional switches (control up to 512 servers) |
| Power | Input: 100V–240V AC, 50–60Hz,
<1.5A Optional DC Input: -36V to
-72V | Input: 100V–240V AC, 50–60Hz,
<1.5A Optional DC Input: -36V to
-72V |
| Operating Environment | Operating Temp: 0°C – 50°C Storage Temp: -20°C – 60°C | Operating Temp: 0°C – 50°C Storage Temp: -20°C – 60°C |
| Physical Characteristics | Net Weight: 13.3 kg Product Dimensions (W×D×H):
448×581×42.5 mm | Net Weight: 13.7 kg Product Dimensions (W×D×H):
448×581×42.5 mm |
| Compatibility | Windows, Sun, Unix, Linux | Windows, Sun, Unix, Linux |
