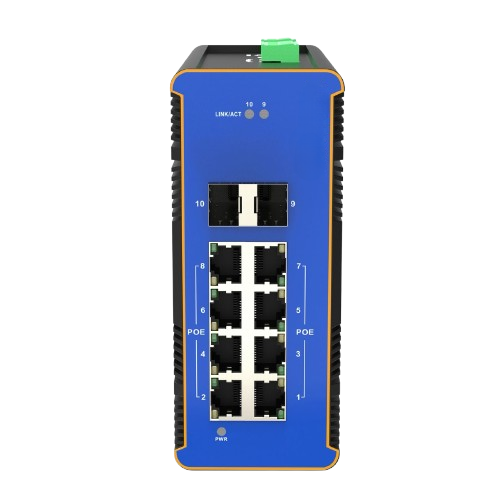

DIN – RAIL 8 PORT MANAGED INDUSTRIAL POE ETHERNET SWITCH

DIN – RAIL 8 PORT MANAGED INDUSTRIAL POE ETHERNET SWITCH

Model No : PA-IDS1808FX-8P

Weight In KG :1

Weight In LB :2.20462



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

OVERVIEW: -

This high-performance L2+ Managed Ethernet Switch features 8 × 10/100/1000TX RJ45 copper ports with PoE and 2/4 × 1000M SFP ports, designed to meet the demanding reliability standards of industrial and transportation applications. It delivers Layer 2 wire-speed performance with advanced security functions, making it ideal for network aggregation and mission-critical deployments. The switch also supports rapid ring recovery of less than 20ms, ensuring stable and continuous network operation.tion.

With a wide operating temperature range of -40 to 75℃, it is built for use in harsh environments. Zero-Touch Provisioning (ZTP) further enhances flexibility by enabling remote deployment and configuration of multi-site networks, reducing the need for on-site engineering and ensuring efficient, cost-effective installation and management.

FEATURES: -

    • Conforms to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
    • Provides 8 × 10/100/1000TX RJ45 copper ports with 8 PoE and 2/4 × 1000M SFP ports
    • PoE budget: 240W
    • High backplane bandwidth: 20Gbps
    • Supports ICMPv6, IPv6 Neighbor Discovery, MLD Snooping, IPv6 Telnet
    • Supports standard IP / Extend IP / MAC IP / ARP ACL
    • IGMP snooping for multimedia applications
    • Port mirroring and bandwidth control
    • IEEE 802.3x flow control
    • VLAN support: Port-based VLAN / 802.1Q Tag VLAN
    • IEEE 802.3ad port trunk with LACP
    • Spanning Tree Protocol support: IEEE 802.1d / 802.1w / 802.1s
    • IEEE 802.1p Class of Service
    • IEEE 802.1x user authentication
    • Broadcast storm control
    • System event logging
    • Command Line Interface (CLI) management
    • Zero-Touch Provisioning (ZTP)
    • Management options: Web / SNMP / SSH / Telnet (IPv6 ready) / Console
    • Surge protection for power and data ports
    • Wide power input: 44~57VDC
    • Wide operating temperature: -40~75℃
    • IP30 aluminium enclosure
    • MTBF: 200,000 hours (parts count reliability prediction)

MECHANICAL DIAGRAM: -

APPLICATIONS: -

  • Industrial Automation
  • Intelligent Transportation Systems (ITS)
  • Railway & Rolling Stock Networks
  • Power and Energy Sector
  • Surveillance & Security (IP Cameras, Access Control)
  • Smart City Infrastructure
  • Campus & Enterprise Networks
  • Oil, Gas, and Mining Environments


TECHNICAL SPECIFICATIONS: -.

PARAMETERSPECIFICATIONS
Hardware Interfaces

8 × 10/100/1000M RJ45 copper ports (PoE supported)

2/4 × 1000M SFP ports

1 × RJ45 Console port

LED Indicators: Power, Link/Act, PoE

Cabling

10Base-T: 2-pair UTP/STP Cat.3/4/5/5E/6, 100m

100Base-TX: 2-pair UTP/STP Cat.5/5E/6, 100m

1000Base-T: 4-pair UTP/STP Cat.5E/6, 100m

Performance

Switching Capacity: 20 Gbps

Forwarding Capacity: 14.88 Mpps

Forwarding Mode: Store & Forward

Packet Buffer: 4.1 Mbit

CPU RAM: 1 Gbit

Flash Memory: 128 Mbit

MAC Address Table: 8K

Jumbo Frame: 16K

VLAN Quantity: 4K

ACL Entries: 512

L3 Interfaces: 32

Port Queues: 8

PoE

Ports: 1–8

Standards: IEEE 802.3af/at

Total Budget: 240W

Max. per Port: 30W

PoE Voltage: 52VDC

Pin Assignment: V– (Pin 1,2), V+ (Pin 3,6)

Management: Port-based enable/disable, status view

Physical & Environmental

Dimensions: 140 × 138 × 40 mm

Operating Temp: -40°C ~ 75°C

Storage Temp: -40°C ~ 75°C

Humidity: 5–95% (non-condensing)

Power Input: 44–57VDC

Power Consumption: 255W (with PoE), 15W (without PoE)

Enclosure: IP30 Aluminium case

Network Features

VLAN: 802.1Q, MAC-based, IP-based, Protocol-based, Voice VLAN, Guest VLAN, Private VLAN, QinQ, VLAN Mapping

Link Aggregation: IEEE 802.3ad (LACP), up to 8 groups (8 ports each)

Port Features: Auto-negotiation, Mirroring (many-to-one), Rate limiting, Flow control (802.3x full duplex / half-duplex backpressure), Storm control

Reliability Protocols

STP / RSTP / MSTP

EAPS (RFC3619), ERPS (G.8032/Y.1344)

LLDP / LLDP-MED

UDLD (Cisco compatible)

BPDU Guard/Filter, Loop detection

SecurityIEEE 802.1x (port-based & MAC-based), Guest VLAN AAA: RADIUS, TACACS+ IP/MAC Binding, DHCP Snooping, Dynamic ARP Inspection ACL: IP Standard, IP Extended, MAC, ARP, Time-based Admin Security: Telnet/SSH/Web/SNMP access control CPU Protection from DoS/Flow attacks
IPv6 Support ICMPv6, Neighbor Discovery, MLD Snooping, IPv6 Telnet
QoS

Queuing: WRR, SP, WFQ

Classification: Port-based, 802.1p, DSCP, ACL-based

QoS Strategy: Packet marking (COS/DSCP), Traffic shaping, Flow statistics, Mirroring

Management

Interfaces: Web, CLI, Telnet, SSH, SNMP (v1/v2c/v3), Console

SNMP: Traps, Standard & Private MIBs

Zero-Touch Provisioning (ZTP)

Monitoring: Logs, RMON (1, 2, 3, 9), CPU/RAM utilization

Cluster Management: Topology discovery, unified management

OAM: IEEE 802.3ah, IEEE 802.1ag

Debugging: Ping, Traceroute, Telnet client

Compliance & Reliability

Standards: IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3af / 802.3at

Certifications: FCC, CE, RoHS

MTBF: 200,000 hours

Surge Protection: Power & Data ports
