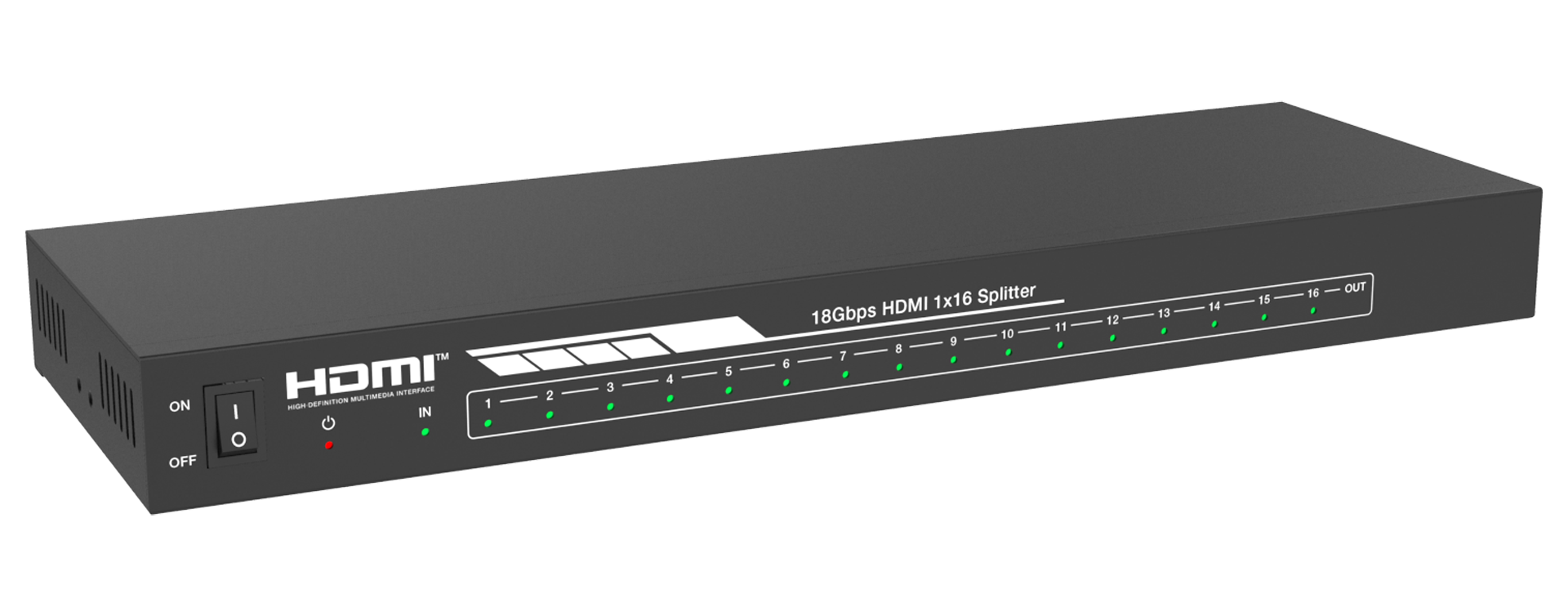

1 X 16 HDMI SPLITTER WITH EDID
1 X 16 HDMI SPLITTER WITH EDID
Model No : PA-HDV-16
OVERVIEW: -
The 18Gbps 1x16 HDMI Splitter allows one HDMI source to be simultaneously distributed to 16
HDMI displays. It supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chroma subsampling.
The splitter features advanced EDID management and is compatible with HDR formats including
HDR, HDR10, HDR10+, HLG, and Dolby Vision. Ideal for use in multimedia conference rooms,
educational displays, large-screen setups, and similar applications. FEATURES: - APPLICATION: - MECHANICAL DIAGRAM: -
TECHNICAL SPECIFICATIONS: -
HDMI Compliance HD | MI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Up to 4k2k@50/60Hz 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0 |
| HDR | Support HDR, HDR10, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby TrueHD, DTS-HD |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Input Port | 1x HDMI Type A (19-pin female) |
| Output Ports | 16x HDMI Type A (19-pin female） |
| Control | 1x SERVICE (Micro USB, Update port） 1x DIAL switch [5-pin] |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 300mm (W) x 100mm (D) x 28mm (H) |
| Weight | 900g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 12W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
