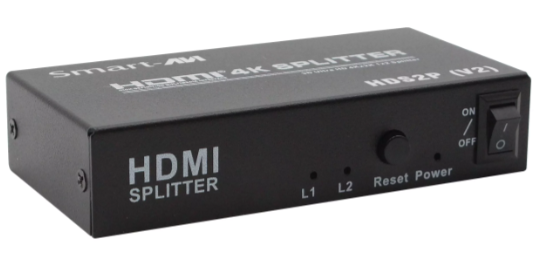

2-Port 4K/2K HDMI Splitter
2-Port 4K/2K HDMI Splitter
Model No : HDS2P-V2
INTRODUCTION
- Ultra HD | 4K (4096×2160) Resolution and Full 3D
- One HDMI 1.4 input signal split to two HDMI 1.4 sink devices
- HDCP 1.3 protocol compliant
- Supports CEC
- Supports deep color 30bit, 36bit
- Supports Blu-ray players
- Digital audio format, with DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Supports signal retiming
- Input up to 50 feet AWG26 HDMI 1.3 standard cable length
- Output up to 80 feet AWG26 cable length
- No loss of quality
- Hardware-only solution
TECHNICAL
|
Video |
|
|
HDMI version |
HDMI 1.4a |
|
HDCP version |
HDCP1.3 |
|
HDMI resolution |
Full HD 1080p (1920×1080
at 60Hz), |
|
Support video color format |
24bit/deep color
30bit,36bit |
|
Support audio format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
Up to 10.2 Gbps
(all channel) |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p(TTL) |
|
Input/Output DDC signal |
5Volts p-p (TTL) |
|
Other |
|
|
Input cable distance |
≤15m HDMI AWG26 |
|
Output cable distance |
≤25m AWG26 HDMI 1.3
standard cable |
|
Max working current |
1A. |
|
Power adapter format |
Input: AC (50HZ, 60HZ)
100V-240V; |
|
Dimensions |
3.9” W x 0.8” H x
1.9” D |
|
Operating Temperature |
+32 to +104°F (0 to
+40°C) |
|
Storage Temperature |
-4 to 140°F (-20
to +60°C) |
|
Humidity |
Up to 95% (No
Condensation) |
