Weight In KG :1.70097
Weight In LB :3.75

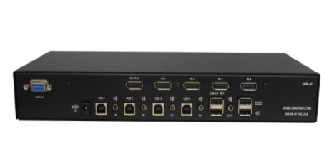

4-Port DisplayPort KVM Switch with USB 2.0 and Front Panel Push Buttons
INTRODUCTION
- Switch KVM control on four connected computers from one workstation with a DisplayPort monitor
- Supports resolutions up to 3840×2160 (@30Hz)
- DisplayPort 1.2 compliant
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 devices, including keyboard and mouse
- Supports Windows, Mac and Linux
- Rack mountable in a standard 19 inch rack
- Supports control via RS-232
- Hot key commands for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a document and save in another computer
- Complete keyboard emulation for error free booting
- Front panel keys for manual switching
- HDMI and DVI supported with adaptors, backwards compatible with prior DisplayPort versions
TECHNICAL
|
Video | |
|
Format |
DisplayPort 1.2 |
|
Input Interface |
(4) DisplayPort (female) |
|
Output Interface |
(1) DisplayPort (female) |
|
Resolution |
Up to 3840×2160 (@30Hz) |
|
Input Equalization |
Automatic |
|
USB | |
|
Signal Type |
USB 2.0, 1.1, and 1.0 w/ internal hub |
|
Input Interface |
(4) USB Type B (female) |
|
Output Interface |
(2) USB 1.1 Type A (female) for keyboard and
mouse |
|
Control | |
|
Front Panel |
Buttons, Select/Switch between Video & Audio
sources and view the current selected |
|
RS-232 |
DB9 Female – 9600 N,8,1, No flow control |
|
Hot Keys |
Via Keyboard |
|
Emulation |
Keyboard and mouse only |
|
Other | |
|
Power |
External 100-240 VAC/ 5VDC2A |
|
Dimensions |
2” H x 6” D x 12.75” W |
|
Weight |
3.75 lbs |
|
Approvals |
UL, CE, ROHS Compliant |
|
Operating Temp. |
+23 to +95°F (-5 to +35°C) |
|
Storage Temp. |
-4 to 185°F (-20 to 85°C) |
|
Humidity |
up to 90% (No Condensation) |
