INTRODUCTION

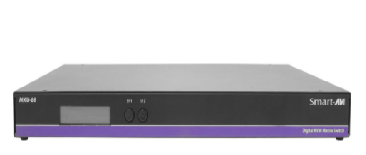

• The MXU-88 is a 8X8 HDMI & USB 2.0 matrix switch: it lets up to eight users easily access & control eight remote computers and USB 2.0 devices from eight workstations, each equipped transparent USB peripherals like keyboards and mice, as well as 4K-compatible HDMI monitors. The MXU-88 offers support for transparent USB 2.0 peripherals like keyboards, mice, hard-drives, scanners, and more. It is highly compatible with HDMI displays, and can support resolutions up to 4K (3840x2160 @ 30Hz).

  How to control

  • SmartAVI designed the MXU-88 to be very user-friendly with two easy modes of control:
  • Front Panel Buttons: use a simple two-button interface to navigate between USB 2.0 and HDMI inputs, or accomplish more advanced features like EDID learning.
  • Web-based Console: connect to a web-based control interface which lets you visualize connections and navigate between them with ease via Ethernet.

  Applications

  The MXU-88 excels in multi-user settings, and works well in various real-world applications such as remote project supervision or group-based video editing endeavors.

  FEATURES

  • (8) HDMI inputs with resolutions up to 4K (3840x2160 @ 30Hz)
  • (8) HDMI outputs with resolutions up to 4K (3840x2160 @ 30Hz)
  • (8) USB 2.0 Type B inputs
  • (8) Dual USB 2.0 Type A outputs
  • Supports digital audio over HDMI
  • Supports DVI-D with adaptors
  • Supports USB 2.0 keyboard-mouse control (NO EMULATION)
  • Supports transparent USB 2.0 peripheral devices (external hard-drives, smart-card readers, scanners, printers, etc...)
  • Simple two-button front panel control with LCD status display
  • Full web-based control console over Ethernet
  • Learns and stores EDID information
  • HDMI 1.4 & HDCP Compliant
  • Control Sun, Mac, or PC computers from one workstation

   Includes

  (1) MXU-88: 8X8 HDMI/USB 2.0 Matrix Switch

  (1) PS12VDC5A power supply

  (1) Quick Start & Installation Guide
