Weight In KG :0.09072
Weight In LB :0.2

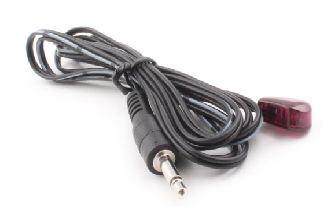

IR Emitter 6’ Single LED / OPTIONAL External Infrared Receiver
IR Emitter 6’ Single LED / OPTIONAL External Infrared Receiver
Model No : IR-LED / IR-EYE
INTRODUCTION
In many audio visual
applications, it may be necessary to place a media center device such as a
satellite receiver, video player or set-top box in a centralized location that
is not in the line-of-sight of the display. Because of this, remote controls
for those devices will not work. To correct this, the IR-LED transmits the
signals from the remote control to the media center device by way of an
infrared extender.
TECHNICAL
|
Specifications | |
|
Signal Type |
TTL |
|
Frequency |
20 - 60 KHz |
|
Receiving Range |
10’ - 50’ |
|
Connector |
3.5mm quad mini phone |
|
Compatiblity |
IR-LED Type 3 |
|
Dimensions |
0.5”W x 0.5”H x 1”D |
|
Weight |
0.2 lbs. |
|
Approvals |
UL, CE, ROHS Compliant |
|
Operating Temp. |
32-131°F (0-55 °C) |
|
Storage Temp. |
-4-185 °F (-20-85 °C) |
|
Humidity |
Up to 95% |
