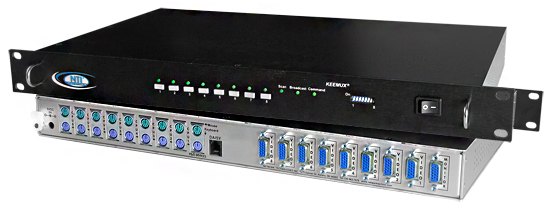

PS/2 KVM Server Switch with OSD and RS232 Control Options

PS/2 KVM Server Switch with OSD and RS232 Control Options

Model No : KEEMUX-P8-R

Weight In KG :2.72155

Weight In LB :6



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

INTRODUCTION

      • The PS/2 KVM switch allows one keyboard, monitor and mouse to control multiple PCs (up to 128 computers). Dedicated internal microprocessors emulate keyboard and mouse presence to each attached PC 100% of the time so all computers boot error free.
      • Control all network computers from one office.
      • Auto scan all computers to catch system failures early.
      • Improve manageability of your computer room – eliminate extra cables, monitors, keyboards and mice.
      • Compatible with IntelliMouse®.
      • Broadcast keystrokes to all computers for simultaneous shut-downs.
      • Cascade smaller KVM switches together as your network grows-up to 128 ports.
      • Available with OSD and/or RS232 Control options.
      • OSD not available on 2-port switch.



TECHNICAL

Hosts
      • Female 15-pin HD and female 6-pin miniDIN connectors.
      • Compatible with all PS/2-style PCs and laptops, HP9000, Silicon Graphics and IBM RS6000 workstations.
      • Compatible with SUN Fire V20z.
      • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Monitor
      • Female 15 pin HD connectors.
      • Supports 1900x1200 resolution with no degradation.
      • Bandwidth is 150 MHz.
Mouse
      • Female 6-pin miniDIN connectors.
      • Compatible with all standard 2-button PS/2 mice as well as the following:
      • Alps Glidepoint Touchpad – extended functions (i.e. tapping, etc.) are not supported.
      • Cirque Glidepoint Touchpad.
      • IBM Scroll Point mouse – extended stick functions are not supported.
      • Kensington Orbit Trackball.
      • Logitech (and other) 3-button mice.
      • Logitech 2-button Wheel Mouse.
      • Microsoft Ballpoint mouse.
      • Microsoft IntelliMouse.
Keyboard
      • Female 6-pin miniDIN connectors.
      • Keyboard and mouse presence are emulated 100% of the time so all computers boot error-free.
      • Keyboard and mouse are hot-pluggable.
      • PC switch will hard or soft boot all PCs 100% of the time.
      • SCROLL-, CAPS- & NUM- LOCK lights update upon switching.
Power

110 or 220 VAC at 50 or 60 Hz via AC adapter.

Two-port switches draw power from attached computers.

MTBF

KEEMUX-P8-R: 60,750 hrs

Environmental

    Operating temperature: 32 to 100°F (0 to 38°C).

    Storage temperature: -22 to 140°F (-30 to 60°C).

    Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.

    Regulatory Approvals

    RoHS

    TAA compliant

    Warranty

    2 years


    KEEMUX-P2 2 Port PS/2 KVM Switch, Desktop
    KEEMUX-P4 4 Port PS/2 KVM Switch, Desktop
    KEEMUX-P4-RS 4 Port PS/2 KVM Switch with RS232 Control, Desktop
    KEEMUX-P8-O 8 Port PS/2 KVM Switch with OSD, Desktop
    KEEMUX-P4-R 4 port 1RU PS/2 KVM Switch, Rackmount
    KEEMUX-P8-R 8 Port 1RU PS/2 KVM Switch, Rackmount
    VKMEXT-3-MM 3 ft
    VKMEXT-35-MM 35 ft
    VKMEXT-100-MM 100 ft
    VKMEXT-3 3 ft
    VKMEXT-6 6 ft
    VKMEXT-35 35 ft
    VKMEXT-75 75 ft
    VKMEXT-100 100 ft
