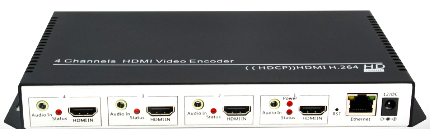

H.264/265 HDMI VIDEO ENCODER 4 CHANNEL WITH STORAGE

H.264/265 HDMI VIDEO ENCODER 4 CHANNEL WITH STORAGE

Model No : PA-EHS104

Weight In KG :0.4

Weight In LB :0.88185



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

FEATURES

      • Embedded HiLinux system, stable and effective
      • Support wide area network remote management (via port forwarding)
      • Support HEVC /H.265 and H.264 /AVC and MJPEG for selection
      • Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding for selection
      • The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s (CBR or VBR bitrate controlling mode)
      • Support Insert TF Card 1T(FAT32/NTFS/exFAT)
      • Support SRT, HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unicast, Multicast etc streaming protocol
      • Support insert image, logo, text, roll text, time on the output video stream
      • Support output video processing (Rotate, Flip, Mirror, Clipping etc)
      • Support output displayed video resolution and frame rate setting (max 1920x1080P@60fps)
      • Support different protocol transmission for the 4 output video streams
      • Support choose HDMI embedded audio or external audio as output audio
      • Support upgrade device by upgrading new firmware
      • Support configures the encoder via webpage or APP
      • Support 4 channel HDMI local loop out
      • Provide SDK and API and CGI for secondary development
      • Network interface full-duplex mode with 1000M speed
      • English webpage operating interface, language is customizable
      • A click to restore the default configuration
      • Stable and effective, support 7 x 24h working time




TECHNICAL

VIDEO

Input
HDMI (support HDCP)
Input Resolution
Max 1080p or 1080i resolution, Max 60fps frame rate
Encoding Type
HEVC/ H.265 and H.264/AVC and MJPEG for selection
Encoding Levels
H.265 and H.264 high/main/baseline profile
Video Bitrate
Adjustable from 32kbit/s to 32 mbi/s
Bitrate Control
CBR or VBR or strong CBR for selection
Output Resolution
It is adjustable, max 3840X2160p/60 fps
Video Pre-processing
De-interlacing, noise reducing and sharpening

AUDIO

Input
HDMI embedded audio or external stereo audio (3.5mm)
Audio Encoding
AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Sampling Rate
44.1KHz, 48KHZ
Bitrate Control
Adjustable from 48000~320000
Sampling Accuracy
24bit
ONVIF
G.711

NETWORK

Interface
1000M Ethernet port (RJ45)
Streaming Protocol

SRT, HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast,

RTMPS etc
Storage
TF Card 1T (FAT32/NTFS/exFAT)
Control Panel
Webpage control panel (language customized) or APP
Firmware Upgrade
Firmware is upgradeable

GENERAL

Dimension (WXLXH)
2380X122X28mm
Net weight
0.4 kg
Temperature
0 to 45 (for working) , -20 to 80(for storing)
Input Voltage
DC 12V/1A
Power Consumption
5w
