Switched IP PDU

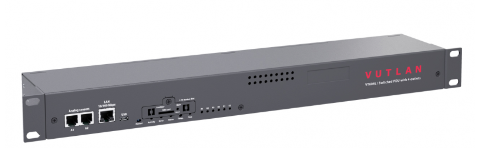

Switched IP PDU With 4 Outlets

Model No : VT604t

Weight In KG :1.5

Weight In LB :3.30693



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

INTRODUCTION

      • The device is used for load management and allows to switch on/off or reboot up to 4 outlets.
      • “VT604t / Switched PDU with 4 outlets” is also used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, and alarms). Can use up to 700 different elements - notifications, triggers, timers, logic schemes, sensors, and dry contacts. Has a built-in Web interface with virtual sensors, logic schemes, different types of notifications, and control panels. Has a slot for an LTE modem for an ethernet connection reservation.

TECHNICAL
CPU Speed / RAM / OS

2 cores, 720mHz / 128Mb / Linux v.6.2

Ethernet
10/100Mbps
Outlets
x4 C13 outlets, 110-240V AC, 50/60 Hz.
Inlet
C14 inlet, 110-240V AC, 50/60Hz, Fuse 10A
Reserve power
12V DC terminal
USB micro
For USB camera, USB flash, USB hub
Analog portsx2 ports for sensors (extendable using CAN)
CAN portConnect up to x32 sensors & devices
Dry Contact inputs
x2 dry contact inputs
LAN
Ethernet 10/100 Base-T port
Relays (12VDC)
x2 outputs, 0.25A each
SD card slot
Up to 512 Gb SDHC
LTE slot modemEthernet, SMS (VT740 ordered separately)
Mounting
19” 1U (brackets included)
Extension slot

VT485m / Modbus RTU extension slot

or VT485r / OSDPv2 reader extension slot

Battery extension slot

VT-ACCU / Rechargeable reservation battery

or VT-BAT / Reservation battery 6F22 9V

Support

On-line portal

Warranty
3 years
