Weight In KG :1.5
Weight In LB :3.30693

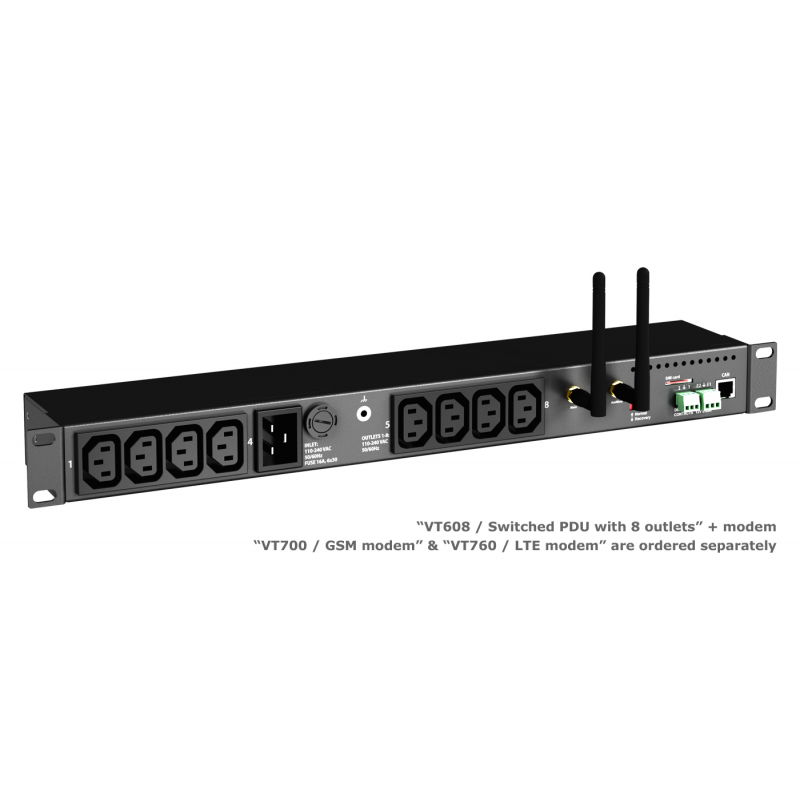

Switched IP PDU
Switching PDU with 8 outlets
Model No : VT608
INTRODUCTION
- The Switched Power Distribution Unit (PDU) is used for load management and allows to switch on/off or reboot up to 4 outlets.It has a built-in temperature sensor, can connect x2 additional analog sensors, x2 dry contact inputs, x2 12V controlled outputs for devices (e.g. alarm beacon or a relay contact), and a digital CAN port for connecting up to x20 sensors or extensions.
- There are built-in servers and agents like HTTP, HTTPS, SNMP v1, 2c, 3, SMTP, Radius, Syslog, FTP, DHCP, and Watchdog.LTE modem can be integrated into the system.
- The modem is
purchased separately!
TECHNICAL
| Description | Switchable |
| Device management | Web, SNMP, manual using SMS, 4G LTE |
| Sensor access | Three-level by login |
Interface and supported protocols | |
| Interface | Any browser |
| LAN | Ethernet 10/100 Mbit |
| Network protocols | DHCP, HTTP, HTTPS, SNMP, SMTP, SSL, FTP, Syslog, RADIUS |
| OS | Linux |
| Memory | 64Mb |
| CPU Speed | 300 MHz |
| Notifications | FTP, Syslog, SMTP, SNMP, SMS (Modem ordered separately) |
| Ping | Built-in pinging |
| LEDs | System status, CAN, 12V outputs E1 and E2, System Error |
| LEDs | Orange for relays |
| Clock | Built-in clock with time synchronization |
| Timer | Built-in watchdog |
| POWER | |
| Power supply | Built-in watchdog 50-60 Hz |
| Input | C20 16A |
Fuse | 16A |
| Outputs | 8 Bistable relays with indication on the front panel |
| Inputs / Outputs | |
| Mini USB AB | USB 2.0 HS |
| Sensors | 2 Analog sensors RJ12 |
| CAN bus | RJ12 for connecting up to 12-20 CAN devices per bus |
| Bistable relays | with indication on the front panel x8 Max 10A |
| Sockets | 8 IEC 320 C13 |
| External memory | |
| USB flash card slot | |
| Scalability (units are ordered separately) | |
| Extension unit | Allows increasing the number of sensors in the system |
| Modem | Internal GSM, LTE |
| Environment | |
| Operating temperature | 0 to 60 °C |
| Storage temperature | –25 to 85 °C |
| Operating humidity | 0 to 90 %, non-condensing |
| Storage humidity | 0 to 95 %, non-condensing |
| Options | |
| Installation | 19” |
| Dimensions (L x W x H) in mm | 440*44*80 |
| Weight | 1,5 kg |
