TECHNICAL

HDMI COMPLIANCE	HDMI 2.0B
HDCP COMPLIANCE	HDCP 2.2/1.X & DVI 1.0 COMPLIANT
VIDEO BANDWIDTH	18 GBPS
VIDEO RESOLUTIONS	4K2K@60HZ (YUV 4:4:4) ON ALL HDMI PORTS
COLOUR SPACE	RGB, YCBCR 4:4:4/4:2:2/4:2:0
COLOUR DEPTH	8-BIT, 10-BIT, 12-BIT
AUDIO FORMATS	LPCM 2/5.1/7.1, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL+,DOLBY TRUEHD, DTS-HD MASTER AUDIO, DOLBY ATMOS, DTS:X
ESD PROTECTION	HUMAN-BODY MODEL: ±8KV (AIR-GAP DISCHARGE), ±4KV (CONTACT DISCHARGE)

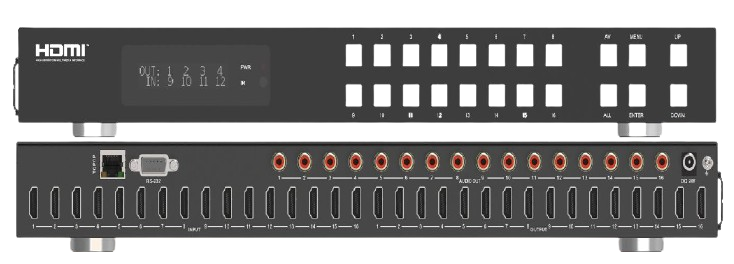

CONNECTIONS

INPUTS	16×HDMI TYPE A [19-PIN FEMALE]
OUTPUTS	16×HDMI TYPE A [19-PIN FEMALE] 16×COAX AUDIO (RCA)

MECHANICAL

HOUSING	METAL ENCLOSURE
COLOUR	BLACK
DIMENSIONS	440MM (W)×200MM (D)×44MM (H)
NET WEIGHT	3.1 KG
POWER SUPPLY	INPUT: AC100 - 240V 50/60HZ OUTPUT: DC 24V/3.75
POWER CONSUMPTION (MAX)	76.8W
OPERATION TEMPERATURE	-10°C ~ 45°C / 14°F ~ 113°F -20°C ~ 60°C / -4°F ~ 140°F
STORAGE TEMPERATURE	-20°C ~ 60°C / -4°F ~ 140°F
RELATIVE HUMIDITY	20~90% RH (NON-CONDENSING)
WARRANTY	12 MONTHS
