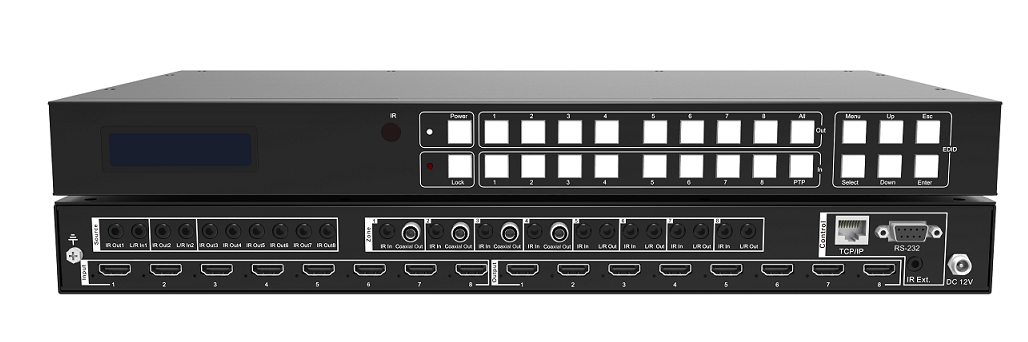

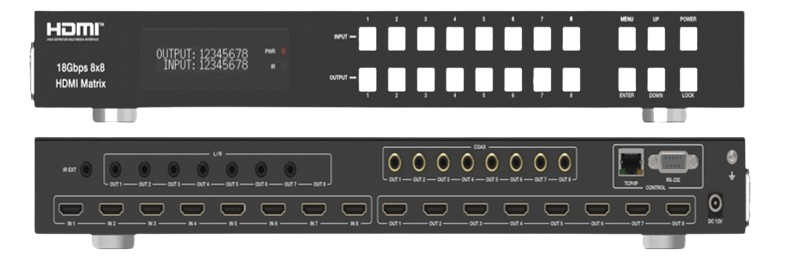

42K 18G HDMI MATRIX SWITCH 8 X 8

4K 18G HDMI MATRIX SWITCH 8 X 8

Model No : PA-HMX-0808

Weight In KG :2.8

Weight In LB :6.17294



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

    INTRODUCTION

        • The 18Gbps 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMIoutput ports.
        • While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8x8 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control is via front panel buttons, IR remote,RS-232, LAN and Web GUI.

    FEATURES

        • HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
        • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
        • Support 18Gbps video bandwidth
        • Dolby Vision, HDR10+ and HLG are supported.
        • Support 4K->1080P Down Scaler for each output port
        • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
        • Master Audio)
        • Audio de-embedded is supported via analog and coax ports
        • ARC, CEC and smart EDID management are supported
        • 1U rack mounted design with front panel OLED display
        • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

    TECHNICAL

    HDMI Compliance
    HDMI 2.0b
    HDCP Compliance

    HDCP 2.2

    Video Bandwidth

    18 Gbps

    Video Resolutions

    Up to 4K2K@50/60Hz (4:4:4)

    Colour Space

    RGB, YCbCr 4:4:4/4:2:2/4:2:0

    Colour Depth

    8-bit, 10-bit, 12-bit

    Audio Formats

    LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+,Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X

    ESD Protection

    Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    CONNECTIONS
    Inputs Ports
      • 8×HDMI Type A [19-pin female]
      • 1×IR EXT [3.5mm Stereo Mini-jack]
    Outputs Ports
      • 8×HDMI Type A [19-pin female]
      • 8×Coax Audio (RCA)
      • 8×L/R Audio [3.5mm Stereo Mini-jack]

    Control ports
      • 1×TCP/IP [RJ45]
      • 1×RS-232 [D-Sub 9]
    MECHANICAL
    Housing

    Metal Enclosure

    Colour

    Black

    Dimensions

    440mm (W)×200mm (D)×44.5mm (H)

    Net Weight

    2.8 kg

    Power Supply

    Input: AC 100 - 240V 50/60Hz

    Output: DC 12V/5A (US/EU standard, CE/FCC/UL certified)

    Power Consumption (Max)

    43W

    Operation Temperature

    -10°C ~ 45°C / 14°F ~ 113°F

    Storage temperature

    -20°C ~ 60°C / -4°F ~ 140°F

    Relative Humidity

    20 - 90% RH (no condensation)

    Warranty
    12 Months
